docker-compose etcd

code

docker-compose.yml

version: '3'

networks:
  etcd-net:
    driver: bridge # 网桥模式

volumes:
  etcd1_data:       # 挂在到 本地数据卷 名
    driver: local
  etcd2_data:
    driver: local
  etcd3_data:
    driver: local

services:
  etcd1:
    image: docker.io/bitnami/etcd:3
    container_name: etcd1
    restart: always
    networks:
      - etcd-net
    ports:
      - "20000:2379"
      - "20001:2380"
    environment:
      - ALLOW_NONE_AUTHENTICATION=yes
      - ETCD_NAME=etcd1
      - ETCD_INITIAL_ADVERTISE_PEER_URLS=http://etcd1:2380
      - ETCD_LISTEN_PEER_URLS=http://0.0.0.0:2380
      - ETCD_LISTEN_CLIENT_URLS=http://0.0.0.0:2379
      - ETCD_ADVERTISE_CLIENT_URLS=http://etcd1:2379
      - ETCD_INITIAL_CLUSTER_TOKEN=etcd-cluster
      - ETCD_INITIAL_CLUSTER=etcd1=http://etcd1:2380,etcd2=http://etcd2:2380,etcd3=http://etcd3:2380
      - ETCD_INITIAL_CLUSTER_STATE=new
    volumes:
      - etcd1_data:/bitnami/etcd
  etcd2:
    image: docker.io/bitnami/etcd:3
    container_name: etcd2
    restart: always
    networks:
      - etcd-net
    ports:
      - "20002:2379"
      - "20003:2380"
    environment:
      - ALLOW_NONE_AUTHENTICATION=yes
      - ETCD_NAME=etcd2
      - ETCD_INITIAL_ADVERTISE_PEER_URLS=http://etcd2:2380
      - ETCD_LISTEN_PEER_URLS=http://0.0.0.0:2380
      - ETCD_LISTEN_CLIENT_URLS=http://0.0.0.0:2379
      - ETCD_ADVERTISE_CLIENT_URLS=http://etcd2:2379
      - ETCD_INITIAL_CLUSTER_TOKEN=etcd-cluster
      - ETCD_INITIAL_CLUSTER=etcd1=http://etcd1:2380,etcd2=http://etcd2:2380,etcd3=http://etcd3:2380
      - ETCD_INITIAL_CLUSTER_STATE=new
    volumes:
      - etcd2_data:/bitnami/etcd
  etcd3:
    image: docker.io/bitnami/etcd:3
    container_name: etcd3
    restart: always
    networks:
      - etcd-net
    ports:
      - "20004:2379"
      - "20005:2380"
    environment:
      - ALLOW_NONE_AUTHENTICATION=yes
      - ETCD_NAME=etcd3
      - ETCD_INITIAL_ADVERTISE_PEER_URLS=http://etcd3:2380
      - ETCD_LISTEN_PEER_URLS=http://0.0.0.0:2380
      - ETCD_LISTEN_CLIENT_URLS=http://0.0.0.0:2379
      - ETCD_ADVERTISE_CLIENT_URLS=http://etcd3:2379
      - ETCD_INITIAL_CLUSTER_TOKEN=etcd-cluster
      - ETCD_INITIAL_CLUSTER=etcd1=http://etcd1:2380,etcd2=http://etcd2:2380,etcd3=http://etcd3:2380
      - ETCD_INITIAL_CLUSTER_STATE=new
    volumes:
      - etcd3_data:/bitnami/etcd

运行

docker-compose up -d

查看运行状态

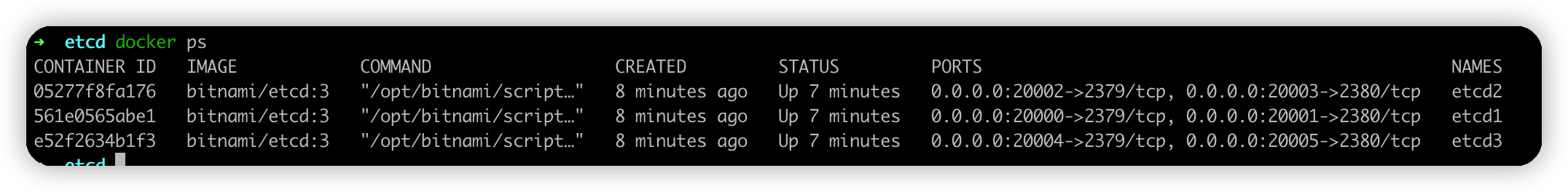

docker ps

docket inspect etcd1

---

[参考]
bitnami-docker-etcd
docker-compose 部署etcd集群
